Item is: In Stock

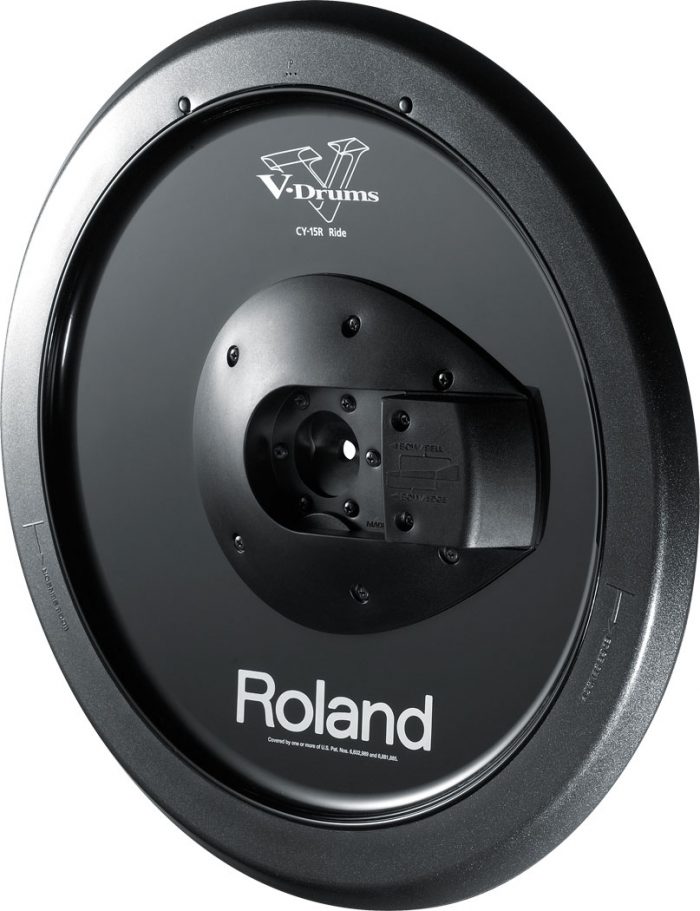

CY-15R: V-Cymbal® Ride
The new CY-15R V-Cymbal™ Ride takes the V-Drums® revolution several steps further by faithfully recreating the dimensions, movement, inertia and timbre changes of an acoustic ride cymbal.15-inch ride cymbal with realistic playing feel; designed with same inertia (movement) as acoustic ride cymbal
Selectable dual-trigger system (edge/bow or bow/bell) allows use as ride cymbal or large crash cymbal
Three-way triggering (edge/bow/bell) available with TD-20, TD-20X, TD-12, TD-9 and TD-4 modules. Also available with the TD-10 sound module equipped with the later version of TDW-1 Wave and System Expansion Board (TDW-1 with V-Cymbal® Control)
Compatible with all Roland TD-Series/SPD-Series sound modules
Note that cymbal timbre changes are dependent on triple-sensing capabilities of V-Drums TD-10 sound module expanded with new TDW-1 with V-Cymbal Control.
The new CY-15R V-Cymbal™ Ride takes the V-Drums® revolution several steps further by faithfully recreating the dimensions, movement, inertia and timbre changes of an acoustic ride cymbal.15-inch ride cymbal with realistic playing feel; designed with same inertia (movement) as acoustic ride cymbal
Selectable dual-trigger system (edge/bow or bow/bell) allows use as ride cymbal or large crash cymbal
Three-way triggering (edge/bow/bell) available with TD-20, TD-20X, TD-12, TD-9 and TD-4 modules. Also available with the TD-10 sound module equipped with the later version of TDW-1 Wave and System Expansion Board (TDW-1 with V-Cymbal® Control)
Compatible with all Roland TD-Series/SPD-Series sound modules
Note that cymbal timbre changes are dependent on triple-sensing capabilities of V-Drums TD-10 sound module expanded with new TDW-1 with V-Cymbal Control.
SPECS
CY-15R (RIDE)
Size
15”
Trigger
3 (Bow/Bell/Edge)*
Connectors
BOW/BELLOutput Jack, BOW/EDGE Output Jack
Accessories
Owner's Manual, Wing Nut, Felt Washer, Stopper, Connection Cable x 2, Cable Tie
SIZE AND WEIGHT
Width
376 mm
14-13/16 inches
Depth
376 mm
14-13/16 inches
Height
50 mm
2 inches
Weight
1.6 kg
3 lbs. 9 oz.
* When the TDW-1 with V-Cymbal Control is not being used on the TD-10, select “Bow/Bell” or “Bow/Edge.”
*The specifications are subject to change without notice.
CY-15R (RIDE)
Size
15”
Trigger
3 (Bow/Bell/Edge)*
Connectors
BOW/BELLOutput Jack, BOW/EDGE Output Jack
Accessories
Owner's Manual, Wing Nut, Felt Washer, Stopper, Connection Cable x 2, Cable Tie
SIZE AND WEIGHT
Width
376 mm
14-13/16 inches
Depth
376 mm
14-13/16 inches
Height
50 mm
2 inches
Weight
1.6 kg
3 lbs. 9 oz.
* When the TDW-1 with V-Cymbal Control is not being used on the TD-10, select “Bow/Bell” or “Bow/Edge.”
*The specifications are subject to change without notice.
-
