JBL LSR308 Studio Reference Monitor
Delivering professional performance at most affordable price points, 3 Series Powered Studio Monitors are first to incorporate JBL’s exciting new technology, the Image Control Waveguide. In conjunction with 3 Series high-performance transducers and system components, the Image Control Waveguide lets you hear detail and depth in recordings as you've never heard before.

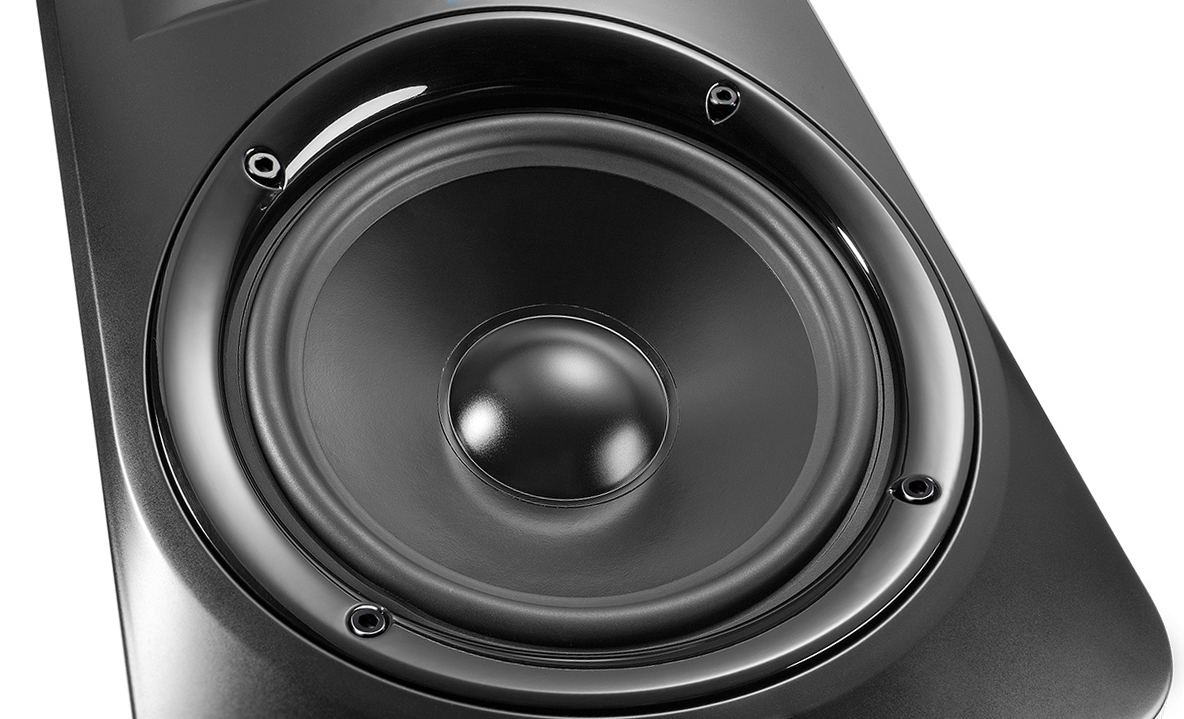

The LSR308 is a Bi-amplified Studio Monitor with Magnetically-Shielded 8” Low Frequency Transducer and 1” Soft-Dome High Frequency Transducer and Image Control Wave Guide. Class-D 56 Watt RMS Amplifier for LF, and 56 Watt RMS Amplifier for HF. Balanced XLR and ¼” TRS Inputs with Detented Level Control, HF and LF Trim Controls.
Frequency Range: 37Hz - 24khz
Max Peak SPL: 112 dB SPL C-Weighted
Max Peak Input: +23 dBu
LF Driver Size: 203 mm (8")
HF Driver Size3: 25 mm (1")
LF Driver Power Amp: 56 W Class D
HF Driver Power Amp: 56 W Class D
LF Trim Control: +2 dB, 0, -2 dB
HF Trim Control: +2 dB, 0, -2 dB
Input Types: 1 x XLR, 1 x TRS Balanced
AC Input Voltage: 100-240 VAC +/- 10% 50/60 Hz
Dimensions (H x W x D): 419 mm x 254 mm x 308 mm (16.5 in x 10 in x 12.1 in)
Weight: 8.6 kg (18.9 lbs)
Not Available
