JBL LSR305 Studio Monitor

Call For Price

Description
Specifications
Accessories
Item is: In Stock

We GUARANTEE the lowest prices on all JBL Speakers. Call us and we'll PROVE it!!

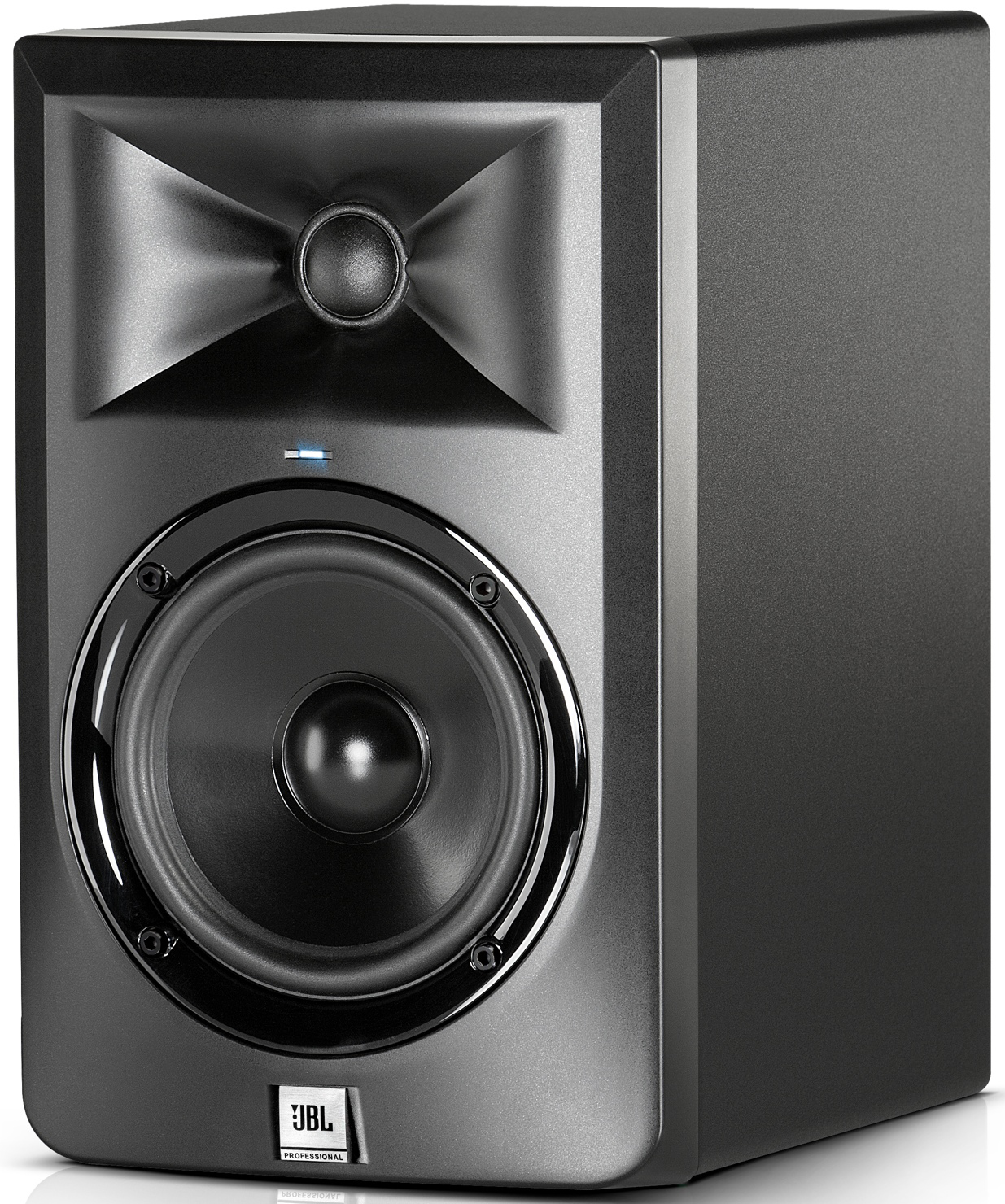

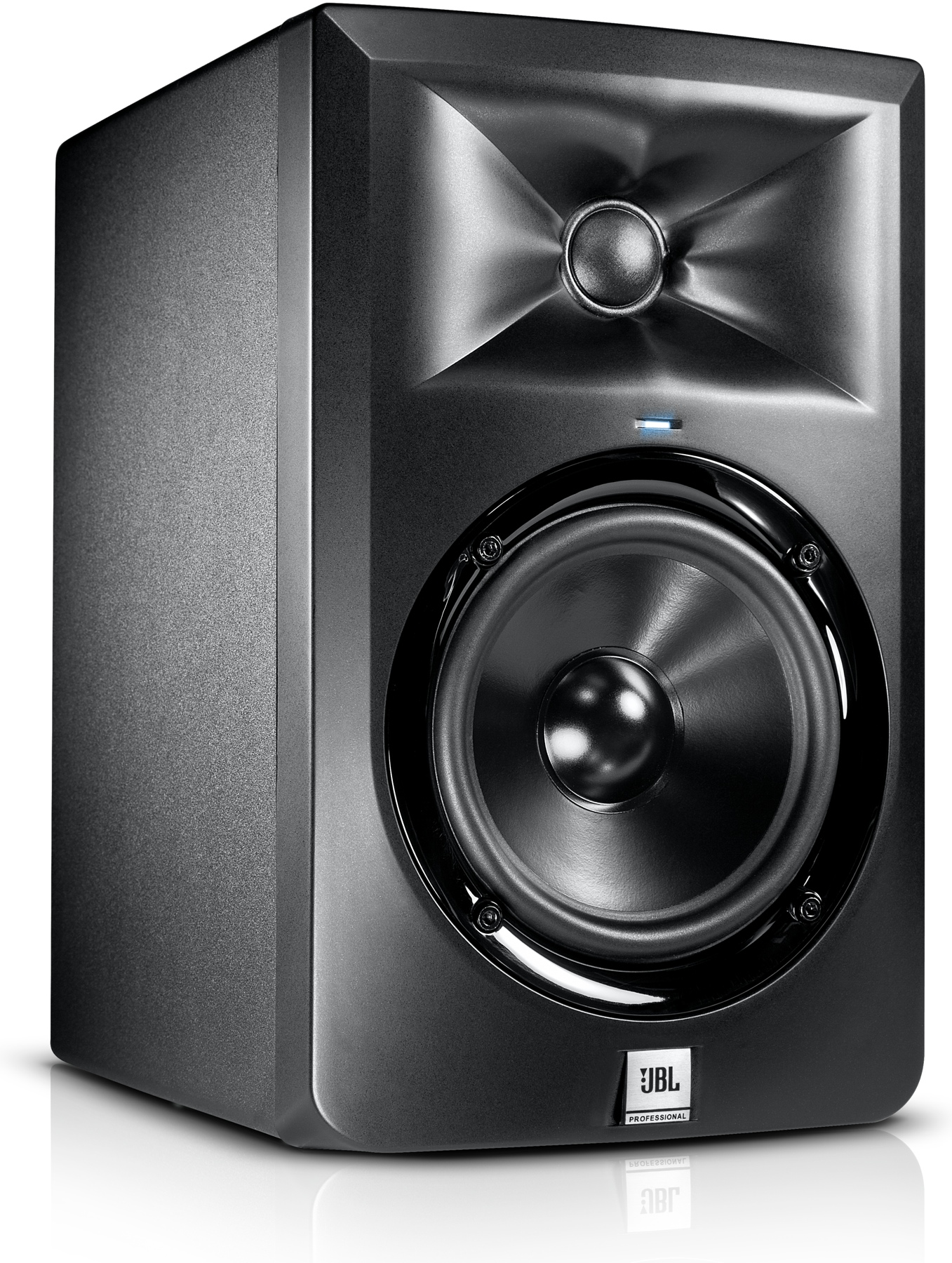

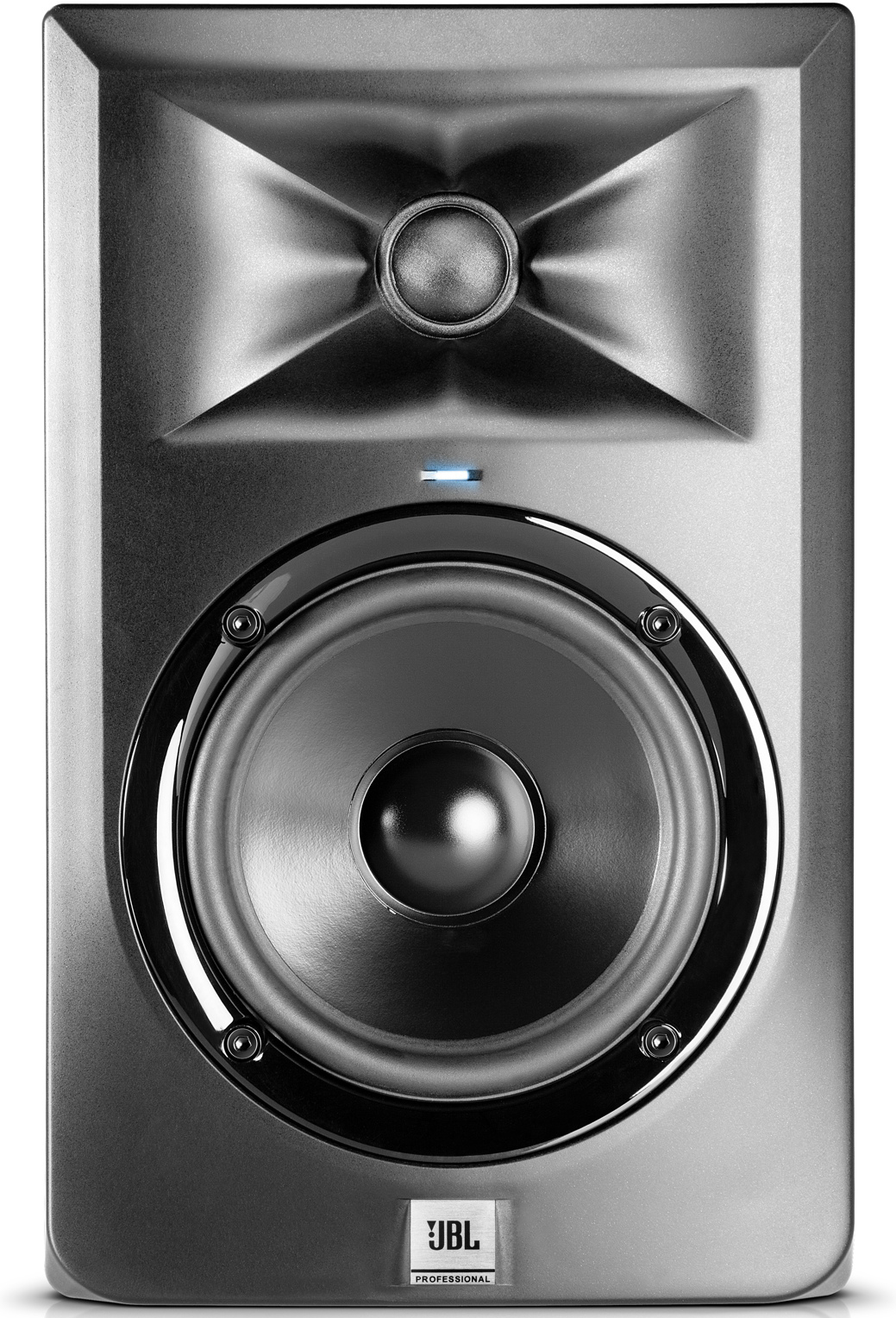

JBL LSR305 Studio Reference Monitor

Delivering professional performance at most affordable price points, 3 Series Powered Studio Monitors are first to incorporate JBL’s exciting new technology, the Image Control Waveguide. In conjunction with 3 Series high-performance transducers and system components, the Image Control Waveguide lets you hear detail and depth in recordings as you've never heard before.

The LSR305 is a Bi-amplified Studio Monitor with Magnetically-Shielded 5” Low Frequency Transducer and 1” Soft-Dome High Frequency Transducer and Image Control Wave Guide. Class-D 41 Watt RMS Amplifier for LF, and 41 Watt RMS Amplifier for HF. Balanced XLR and ¼” TRS Inputs with Detented Level Control, HF and LF Trim Controls.

Frequency Range: 43 Hz-24 kHz
Max Peak SPL: 108 dB SPL C-Weighted
Max Peak Input: +23 dBu
LF Driver Size: 127 mm (5")
HF Driver Size: 25 mm (1")
LF Driver Power Amp: 41 W Class D
HF Driver Power Amp: 41 W Class D
LF Trim Control: +2 dB, 0, -2 dB
HF Trim Control: +2 dB, 0, -2 dB

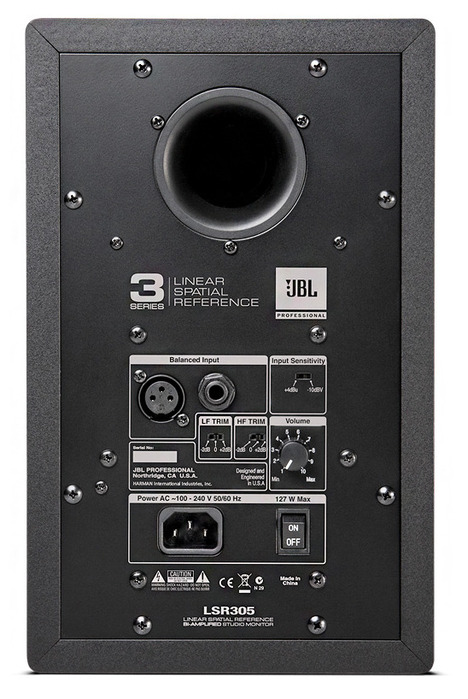

Input Types: 1 x XLR, 1 x TRS Balanced
AC Input Voltage: 100-240 VAC +/- 10% 50/60 Hz
Dimensions (H x W x D): 298 mm x 185 mm x 251 mm (11.75 in x 7.28 in x 9.88 in)
Weight: 4.6 kg (10.12 lbs)
