The 2-in, 4-out USB interface for musicians and DJs
Scarlett 2i4 is a 2 in / 4 out USB audio interface featuring two award-winning Focusrite pre-amps and four high-quality audio outputs. Housed in a rugged, anodised aluminium unibody chassis, the Scarlett 2i4 is the perfect audio interface for musicians and digital DJs and can fully withstand the rigours of the road.
Ready to make music!
Connect Scarlett 2i4 to your computer and get ready to make music! With the very best in digital audio technology and a great selection of input and output options, the Scarlett 2i4 will capture and play back your sound with superb quality.
Plug straight in
The front panel has two combo XLR inputs to connect microphones, guitars and line level signals such as keyboards, safe in the knowledge that your sound is in the best possible hands. Use the “PAD” function for high-output guitars or microphones, and use the “DIRECT MONITOR” control for a low-latency mix of input and playback signals.
Checking your levels
Scarlett’s unique “signal halos” let you know that you’ve got the right audio level for recording. Green is good, while red means that your audio is too loud and you need to lower the gain control.
DJ-ready outputs
With 4 RCA outputs, a large, tactile main monitor level control and a high-level headphone output with its own volume control – along with pristine audio quality, in a package ready for the road – Scarlett 2i4 is ideal for today's digital performers and laptop-based DJs.
Polish Your Mix
All Scarlett audio interfaces include Ableton Live Lite recording software, plus two powerful software plug-ins: Red Plug-in Suite and Scarlett Plug-in Suite.
Red 2 & Red 3 Plug-In Suite
The Red Plug-in Suite accurately models our classic Red 2 equaliser and Red 3 compressor, to bring the sound of the famous original hardware to your music software.
Scarlett Plug-In Suite
Scarlett Suite is a professional plug-in suite that provides a definitive suite of compression, gating, EQ and reverb, for tracking and mixing your music.
General
- 2 in / 4 out USB audio interface
- 96 KHz, 24-bit conversion
- 2 Focusrite microphone preamplifiers
- Red anodised aluminium unibody chassis

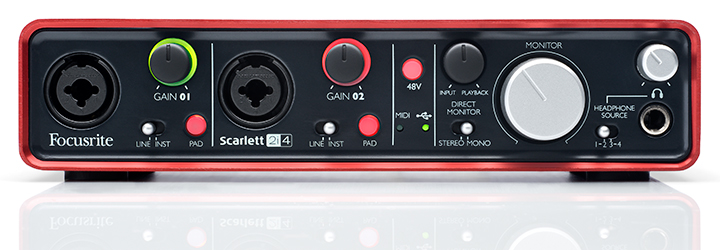

Front panel
- 2 line/mic/instrument combination inputs - high quality XLR/ ¼ “ TRS Jack Combo
- 2 line/inst switches
- 2 illuminating “PAD” buttons
- 2 Gain knobs
- 2 Gain halo signal indicators
- 48V Phantom power switch
- MIDI activity LED indicator
- USB connection LED indicator
- “DIRECT MONITOR” control
- “STEREO/MONO” switch for direct monitor
- Large monitor level dial (controls headphone and line level outputs)
- Headphone output - ¼” TRS Jack
- Headphone level knob
- “HEADPHONE SOURCE” switch
Rear panel
- 2 balanced monitor outputs – TRS (channels 1-2)
- 4 unbalanced outputs – RCA Phono (channels 1-4)
- MIDI IO
- USB 2.0 Port
- Kensington Lock slot
Included software
- Ableton Live Lite 8
- Focusrite Scarlett plug-in suite
- Novation Bass Station
- Loopmasters content
Analogue Input Performance
Mic
Frequency Response: 20Hz - 20kHz +/- 0.1 dB
THD+N: < 0.002% (minimum gain, -1dBFS input with 22Hz/22kHz bandpass filter)
Equivalent Input Noise (EIN): < -120dB: measured at 55dB of gain with 150Ω termination (20Hz/22kHz bandpass filter)
Gain Range: +10dB to +55dB (0dB to +45dB when pad is engaged)
Max Input Level: +3.5dBu
Line
Frequency Response: 20Hz - 20kHz +/- 0.1dB
THD+N: < 0.01% (‘A’ weighted measured with +16dB input gain -1dBFS at output and 22Hz/22kHz bandpass filter)
Noise: -90 dBu (22 Hz/22KHz bandpass filter)
Signal to Noise Ratio: > 100dB
Gain Range: -10dB to +35dB (-20dB to +25dB when pad is engaged)
Max Input Level: +26dBu (at 1% THD+N)
Instrument
Frequency Response: 20Hz - 20kHz +/- 0.1dB
THD+N: 0.0025% (‘A’ weighted measured with 16dB input gain, -1dBFS at output and 22Hz/22kHz bandpass filter)
Noise: -87dBu (22Hz/22kHz bandpass filter)
Gain Range: +10dB to +55dB (0dB to +45dB when pad is engaged)
Max Input Level: +3dBu (+13dBu pad in)
Analogue Output Performance
Nominal Output Level: 0dBFS = +10dBu, balanced / 0dBFS = +5.5bBu, unbalanced
Frequency Response: 20Hz - 20kHz +/- 0.2dB
THD+N: < 0.0015%, balanced (-1dBFS input 22Hz/22kHz bandpass filter, un-weighted) / < 0.03 %, unbalanced (0dBFS input 22Hz/22kHz bandpass filter)
Output Impedance: < 12Ω
Power Output into 32Ω: 24mW
Digital Performance
Clock sources: Internal clock only
A-D Dynamic Range: 105dB 'A-weighted' (all inputs). Converter chipset A-D dynamic range 114dB
D-A Dynamic Range: 104dB 'A-weighted' (all outputs). Converter chipset D-A dynamic range 114dB
Supported sample rates: 44.1 KHz, 48 KHz, 88.2 KHz, 96 KHz
Crosstalk
Input to Input: Better than 90dB
Output to Output: Better than 90dB
Input to Output: Better than 85dB
Input Metering
Ring LED lit Green: Signal present (-24 dBFS)
Ring LED lit Red: Signal overload (0dBFS), peak held for approximately 1 second
Weight and Dimensions
Height: 48 mm
Width: 210 mm
Depth: 140 mm
Weight: 890 g
