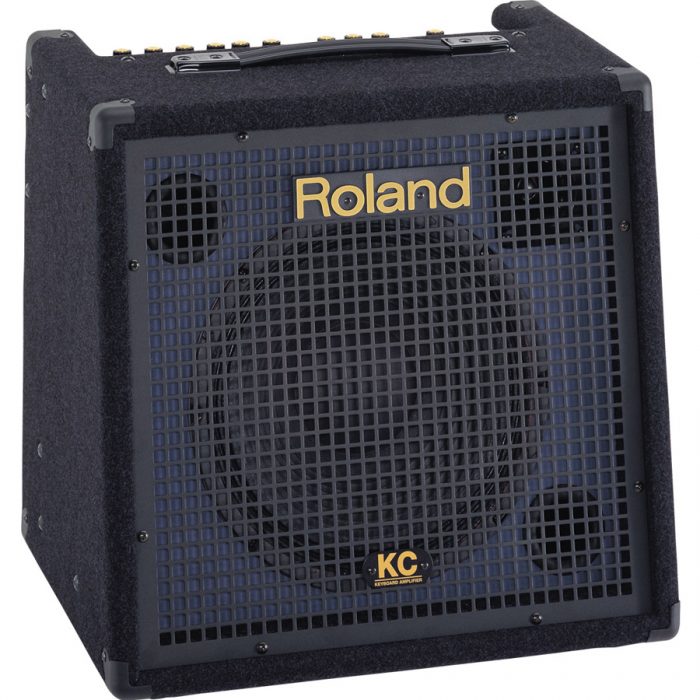

An All-Around Performer
The perfect combination of power and value, the new KC-350 is ideal for medium-sized gigs. It features a 120-watt amplifier with convenient 3-band EQ, new Output Select and Shape switch features, plus a Subwoofer output for extra low end. The KC-350 can also be connected to mixer or recording devices via its 1/4" phone Line output.
- Stereo mixing keyboard amplifier with 120-watt/12-inch speaker and horn tweeter
- Output Select switch and convenient Shape switch for tonal adjustment
- 3-band EQ and Subwoofer output compatible with new KCW-1
- 1/4-inch phone output for connection to recording devices
- Stereo Link In/Out for chaining to KC-350s for stereo stage sound
UP TO 4-CHANNEL MIXING
KC-series amplifiers feature a flexible mixing section designed with the performing musician in mind. Our flagship models feature up to four stereo inputs, and KC amps include a Microphone input and stereo Auxiliary input for connecting CD players.
STEREO LINK CAPABILITIES
The KC-550 and KC-350 include Roland’s Stereo Link feature for chaining two amplifiers. Using a single cable, you can connect two KC amps for true stereo sound while controlling them both from the amp nearest you on stage.
SUBWOOFER-READY
Want more low end? Simply add an optional subwoofer like Roland’s new KCW-1. Connections are easy, thanks to the Subwoofer output found on all new KC amps. Now even the most affordable models can sound huge!
MADE FOR THE ROAD
KC amps are built for life on the road. All models have built-in handles for easier transportation (the KC-550 also includes casters) and a rugged design with heavy-duty carpeting, protective edges and an all-metal grille.
OUTPUT
Rated Power Output: 120 W
Speakers: 30 cm (12 inches) x 1, Tweeter x 1
NOMINAL INPUT LEVEL (1 KHZ)
Channel 1 (MIC/LINE): -50 to -20 dBu
Channel 2-4 (LINE): -20 dBu
STEREO LINK INPUT: 0 dBu
AUX IN: -10 dBu
NOMINAL OUTPUT LEVEL (1 KHZ)
LINE OUT: +4 dBu
STEREO LINK OUTPUT: 0 dBu
SUBWOOFER OUT: +4 dBu

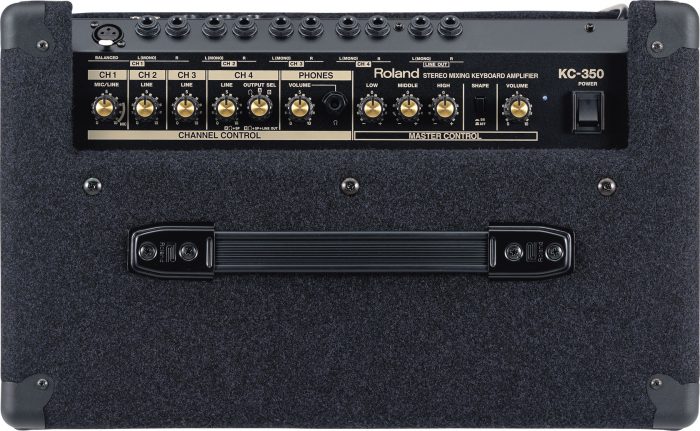

CONTROLS
CHANNEL CONTROL: CH1, CH2, CH3, CH4 VOLUME Knob, OUTPUT SELECT Switch, PHONES VOLUME Knob
MASTER CONTROL: EQ (LOW) Knob, EQ (MIDDLE) Knob, EQ (HIGH) Knob, SHAPE Switch, VOLUME Knob, POWER Switch
INDICATOR
POWER

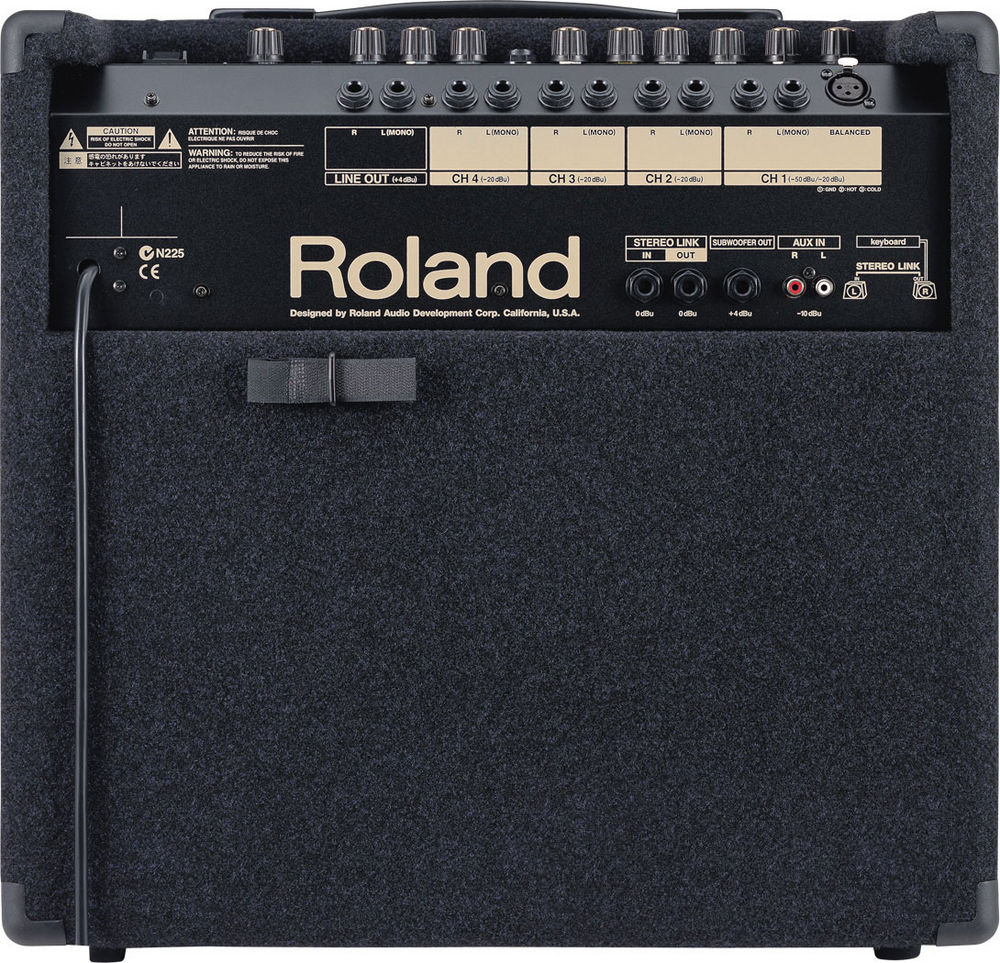

CONNECTORS
CH1 INPUT Jack (XLR type)
CH1-4 INPUT L (MONO) Jacks (1/4" phone type)
CH1-4 INPUT R Jacks (1/4" phone type)
LINE OUT L (MONO) Jacks (XLR type, 1/4" phone type)
LINE OUT R Jacks (XLR type, 1/4" phone type)
AUX IN Jacks (RCA phono type)
SUBWOOFER OUT Jack (1/4" phone type)
STEREO LINK OUT Jack (1/4" phone type)
STEREO LINK IN Jack (1/4" phone type)
PHONES Jack (Stereo 1/4" phone type)
POWER SUPPLY
Voltage: 100 W
SIZE AND WEIGHT
Width: 490 mm (19-5/16 inches)
Depth: 385 mm (15-3/16 inches)
Height: 470 mm (18-9/16 inches)
Weight: 24.5 kg (54 lbs. 1 oz.)
