Portable Stereo Digital PA System

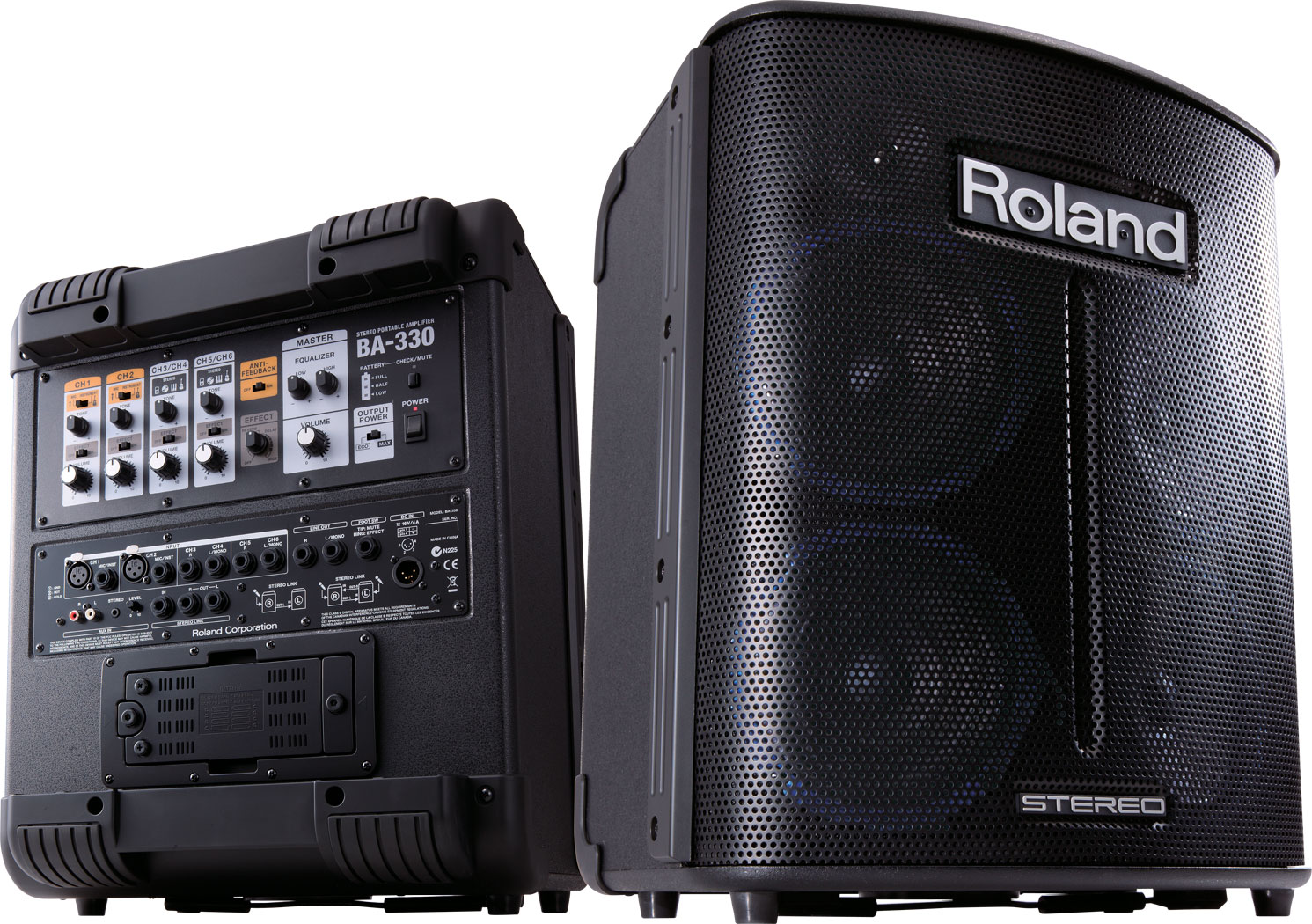

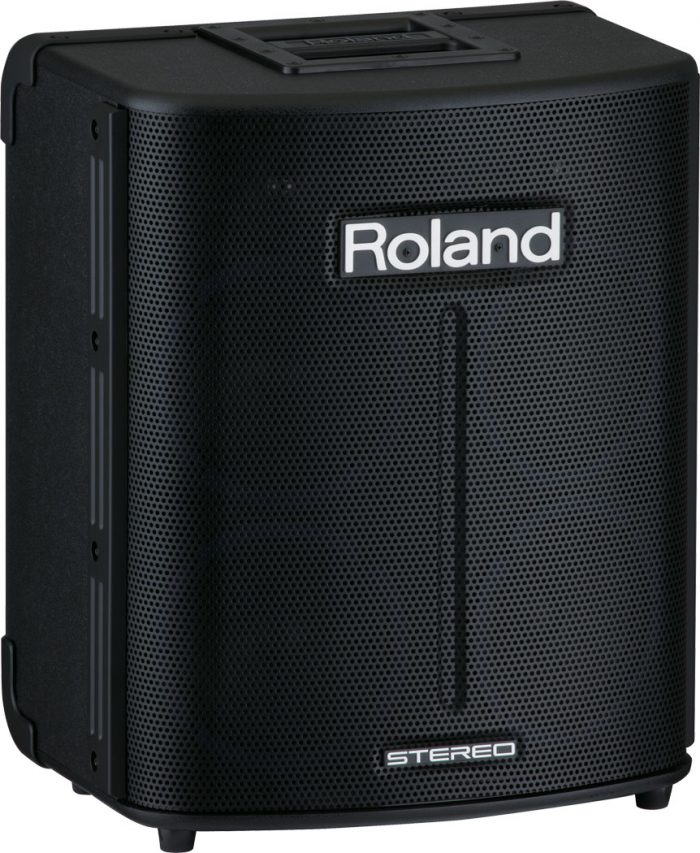

Whether battery powered or plugged in, the BA-330 delivers high-performance sound that defies its size. Its digital stereo amplifier drives four 6.5″ stereo speakers and two tweeters, positioned for wide stereo projection. It’s the ideal, all-in-one portable PA solution for small music venues, worship events, conferences, seminars, business meetings and much more.
- All-in-one portable digital PA system suitable for use anywhere
- Powerful high-quality stereo sound for audiences of up to 80 people
- No setup required, just plug in and go!
- Powered by AC power or eight AA batteries

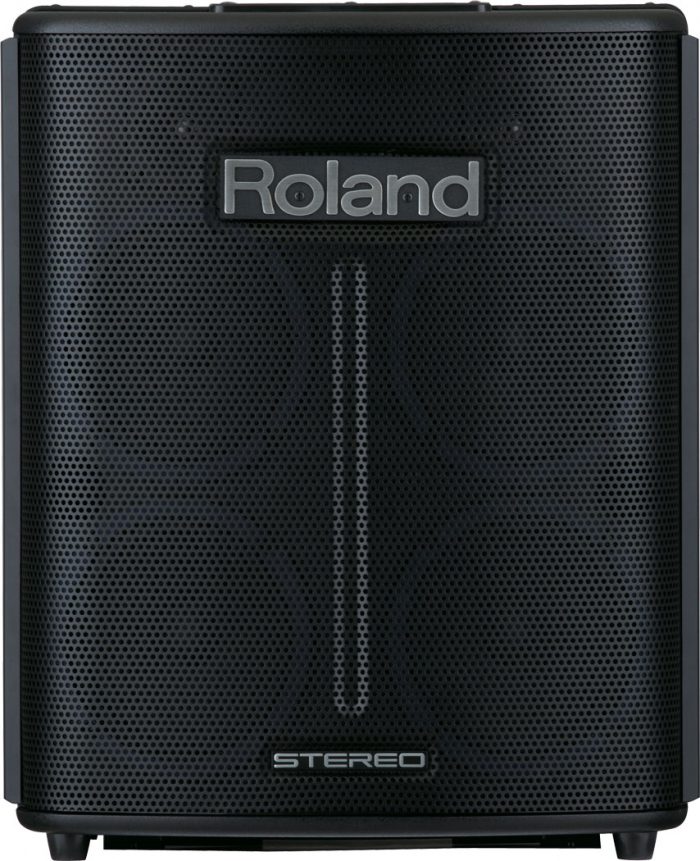

- Four custom-designed 6.5″ speakers and two tweeters for wide stereo projection
- Built-in effects: EQ, reverb, delay, and wide (on/off per channel)
- Four-channel configuration: two channels for mic/instruments plus two channels for stereo inputs

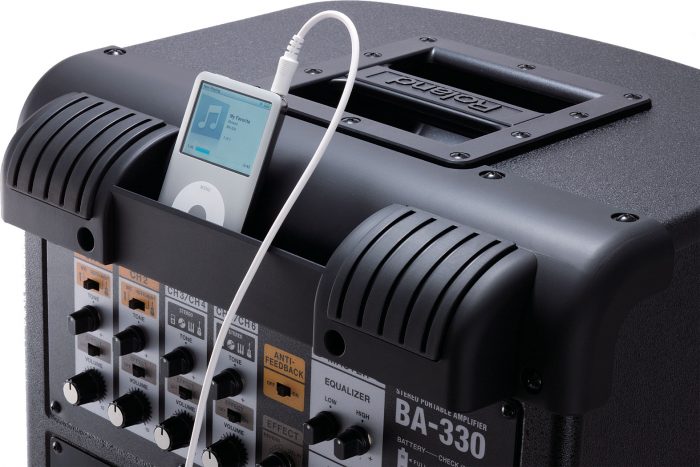

- Stereo Aux input with dedicated volume-control knob
- Advanced Intelligent Anti-Feedback function

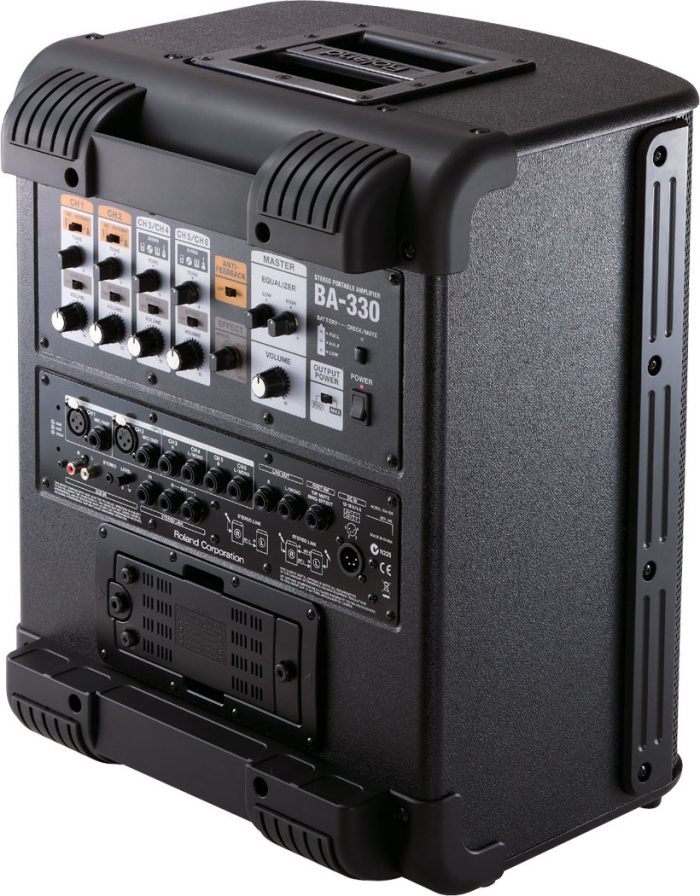

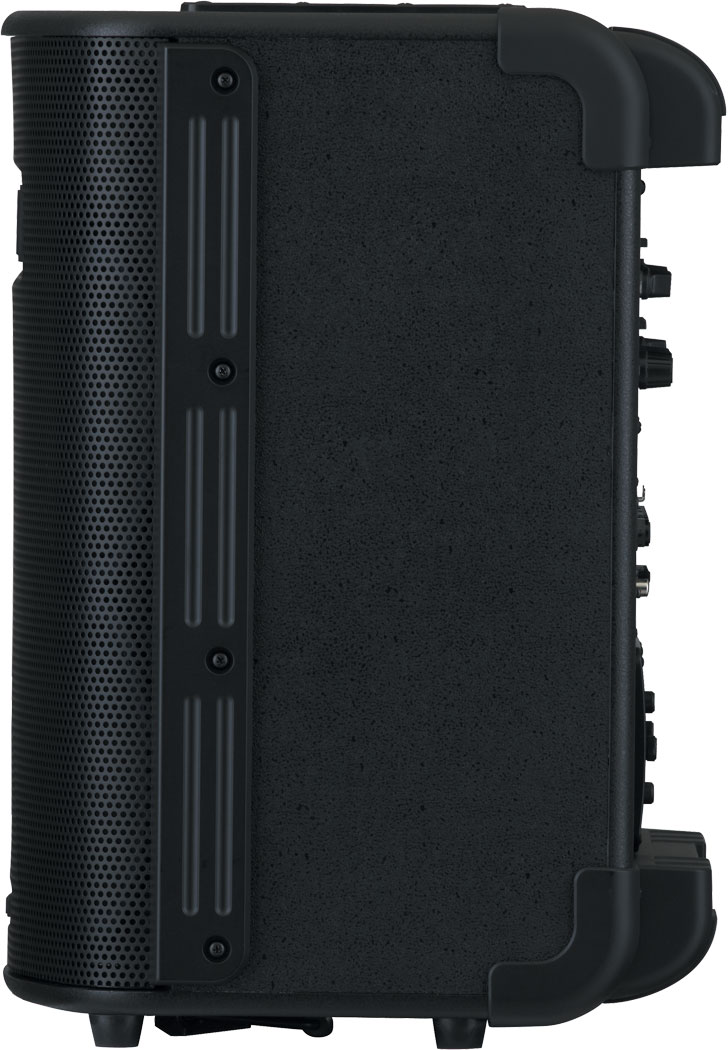

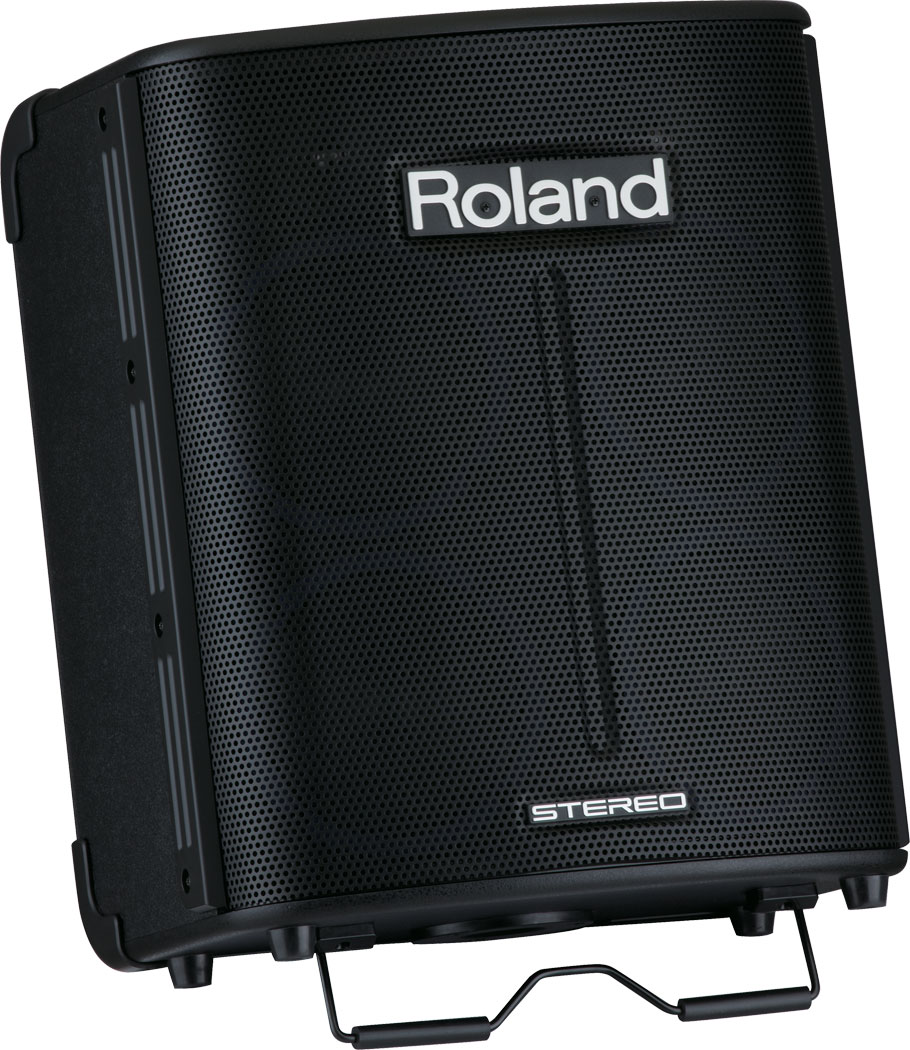

- Built-in tilt-back stand enables optimal monitoring angle
- Speaker-stand adaptor for mounting on a standard speaker stand
If you’ve ever encountered embarrassing feedback onstage, and most of us have, you’ll be pleased to know that the BA-330 is equipped with Roland’s advanced Anti-Feedback technology. With a simple switch, the BA-330 automatically detects the howling point and eliminates feedback.
Three high-quality effects are built-into the BA-330: Reverb, Delay, and Wide. The effects can be turned on/off independently for each channel. In addition, a master 2-band EQ is provided as well as EQ control for each channel.
A wide range of instruments, microphones, and devices can be plugged into the BA-330 simultaneously. Two mono channels are provided for microphones or line-level instruments (XLR and 1/4″ jacks), two stereo channels are provided for stereo instruments (1/4″ L/R jacks), and a stereo Aux input channel is provided for CD players and other devices (RCA and TRS jacks).
The BA-330’s Stereo Link jack lets you cascade two units, giving you twice as many channels and the ability to position the two units on opposing sides of the stage.
– 16 cm (6.5 inches) x 4, Tweeter x 2
Nominal Input Level (1 kHz):
– CH 1, CH 2 MIC: -50 dBu, CH 1,CH 2 INST: -20 dBu, CH 3/CH 4, CH 5/CH 6: -20 dBu, AUX IN: -10 dBu, STEREO LINK IN: -10 dBu
Nominal Output Level (1 kHz):
– LINE OUT: -10 dBu, STEREO LINK OUT: -10 dBu
– CH1,CH2: MIC/INSTRUMENT Switch, EFFECT Switch, TONE Knob, VOLUME Knob, CH3/CH4, CH5/CH6: EFFECT Switch, TONE Knob, VOLUME Knob
– Equalizer (LOW Knob, HIGH Knob), VOLUME Knob, ANTI FEEDBACK Switch, EFFECT Knob, BATTERY CHECK/MUTE Switch, OUTPUT POWER Switch
AUX IN Control:
– LEVEL Knob
– BATTERY, BATTERY CHECK/MUTE, POWER

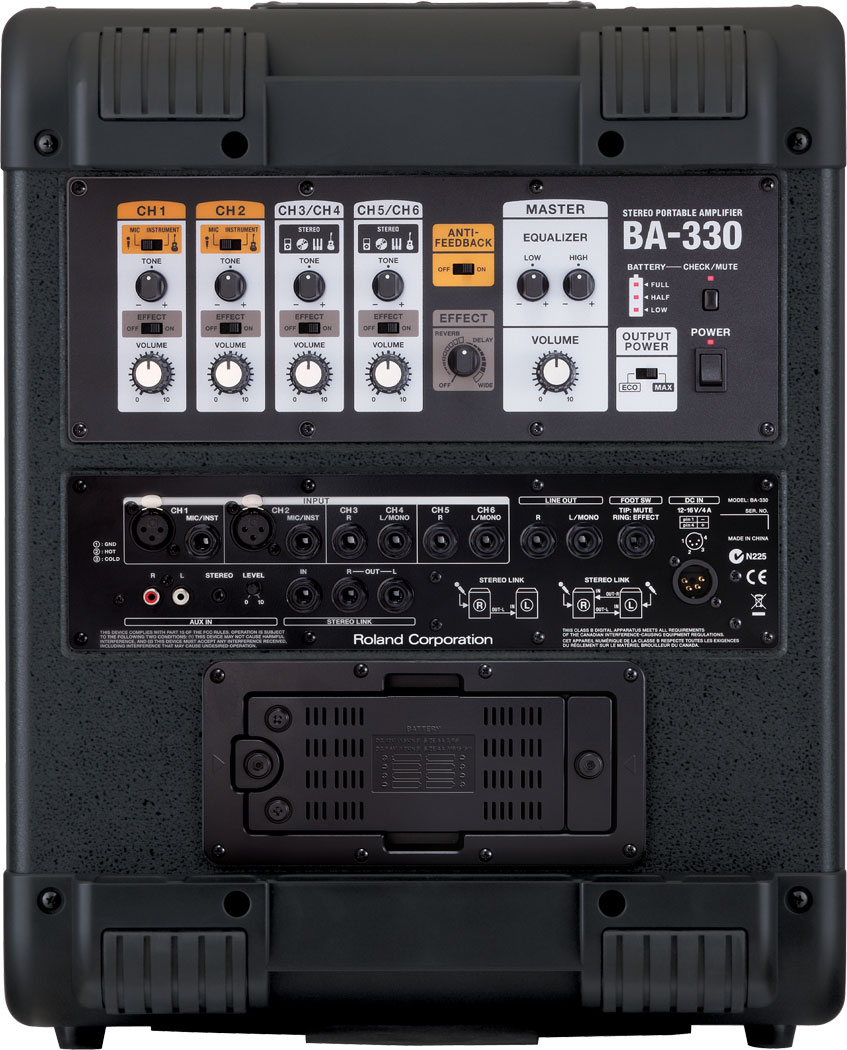

– CH 1, CH 2: Input Jacks (XLR type, 1/4” TRS phone type)
– CH 3/CH 4, CH 5/CH 6: Input Jack L/MONO (1/4” phone type), Input Jack R (1/4” phone type)
– AUX IN: Input Jacks (Stereo miniature phone type, RCA phono type)
– Output: LINE OUT Jack L/MONO (1/4” phone type), LINE OUT Jack R (1/4” phone type)
– STEREO LINK: STEREO LINK OUT Jacks L/MONO, R (1/4” phone type), STEREO LINK IN Jack (1/4” phone type)
– FOOT SWITCH: FOOT SWITCH Jack (1/4” phone type) DC IN: DC IN Jack
– DC 12 V

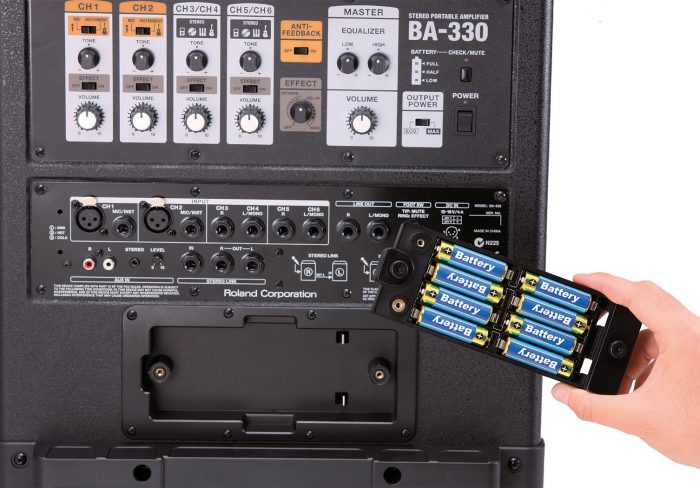

– Dry battery LR6 (AA) type (alkaline) x 8
– Rechargeable battery HR6 (AA) type (nickel metal hydride) x 8
– AC Adaptor
– 410 mA
Expected battery life under continuous use:
– Alkaline: approx. 8 hours (MAX), approx. 12 hours (ECO)
– Nickel-metal hydride: approx. 10 hours (MAX), approx. 15 hours (ECO)
*These figures will vary depending on the actual conditions of use
– AC Cord, AC Adaptor, Owner’s Manual
– Carrying Bag (CB-BA330), Speaker Stand (ST-A95), Foot Switch: BOSS FS-5L (MUTE), BOSS FS-5U (EFFECT), BOSS FS-6, Connection Cable: PCS-31, PCS-33
SIZE AND WEIGHT:
Width: 415 mm (16-3/8 inches)
Depth: 323 mm (12-3/4 inches)
Height: 509 mm (20-1/16 inches)
Weight: 13.8 kg (30 lbs. 7 oz.)
